Overview

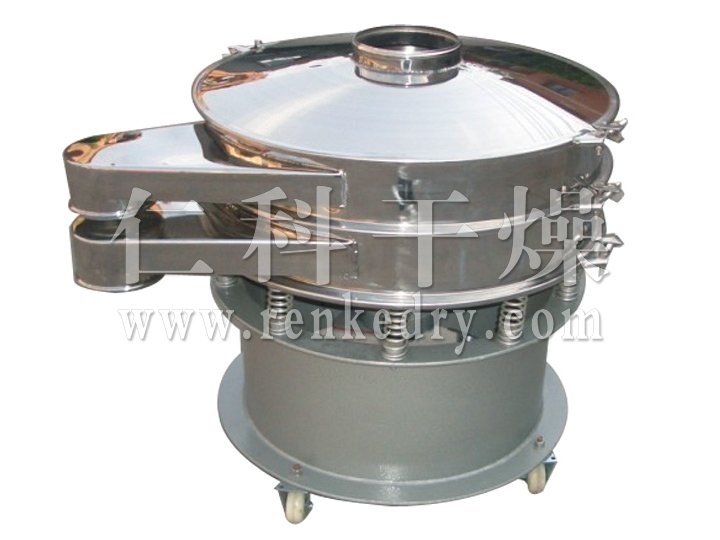

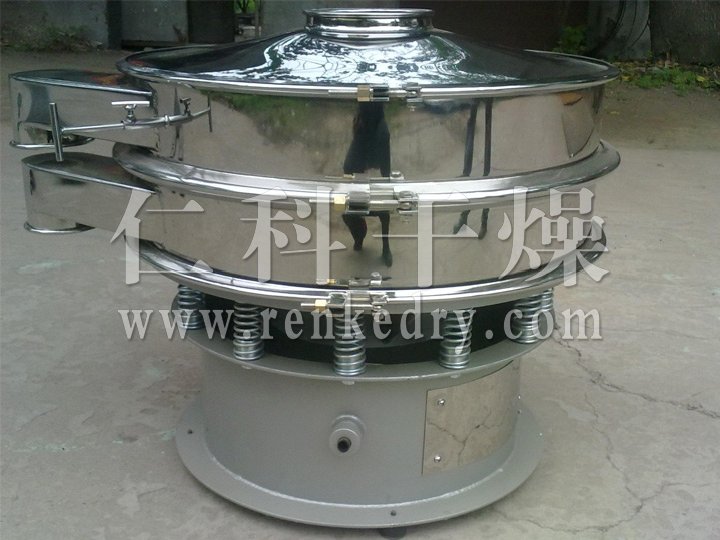

The machine consists of hopper, oscillation chamber, coupling, motor. Oscillating room with eccentric wheel, rubber software, spindle, bearings and other components. Adjustable eccentric weight driven by the motor to the spindle center line, in the unbalanced state of centrifugal force, so that the material strength changes in the formation of orbital vortex in the screen. The amplitude of the hammer adjuster can be adjusted according to different materials and screens. The whole structure is compact, small size, no dust, low noise, high quality, low energy consumption, easy maintenance of mobile.
Technical specifications
| model | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Production capacity(kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| The number of mesh | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Motor Power(kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Spindle speed(rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Dimensions(mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| net weight(kg) | 100 | 180 | 250 | 300 | 350 | 400 |
