product manual
◎ heating heat source has steam, electricity, electric steam dual-use three ways.
◎ use temperature: steam heating 50-140 ℃, up to 150 ℃; electric heating 50-350 ℃;
◎ temperature automatic control, and a recorder record;
◎ box wall are full of welding, the transition are used arc transition, no dead ends.
◎ machine seal is good, the unique rail sealing device to ensure that the whole machine sealing;
◎ air inlet supporting high efficiency air filter; wet mouth supporting the effect of air filter.
◎ double-door oven double door to achieve mechanical interlock;
◎ all parts of the oven can be quickly removed, quick installation, to facilitate cleaning;
◎ control system with a text display, touch screen to choose from;
◎ machine meet the "GMP" requirements.

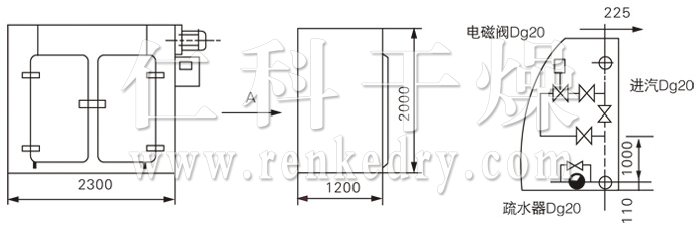

Schematic
| Model / Specification |
Each amount of drying （kg） |
Fan power （kw） |
Consuming steam （kg/h） |
Drying car (Vehicle） |
Baking plate (only） |
Width × depth × height （mm） |
Up and down temperature （℃） |
| GMP-O | 35 | 0.45 | 8 | / | 16 | 1130×1100×1750 | ±2 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300×1200×2000 | ±2 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300×2200×2000 | ±2 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430×2200×2000 | ±2 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460×2200×2290 | ±2 |
