WORKING PRInciple

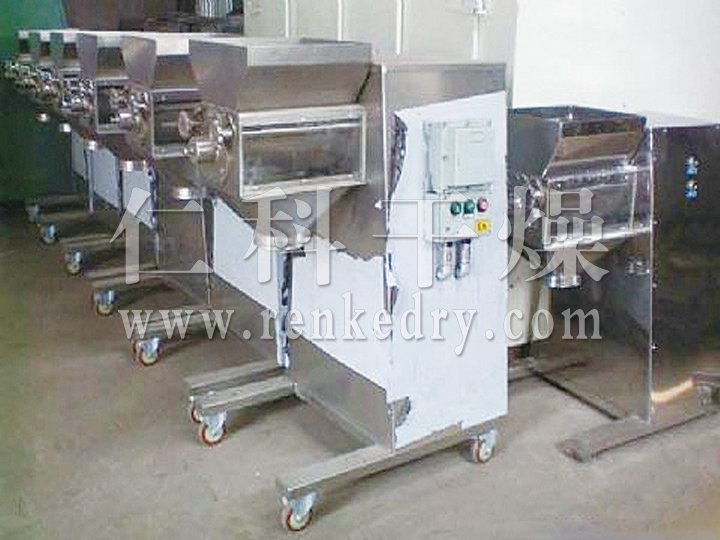

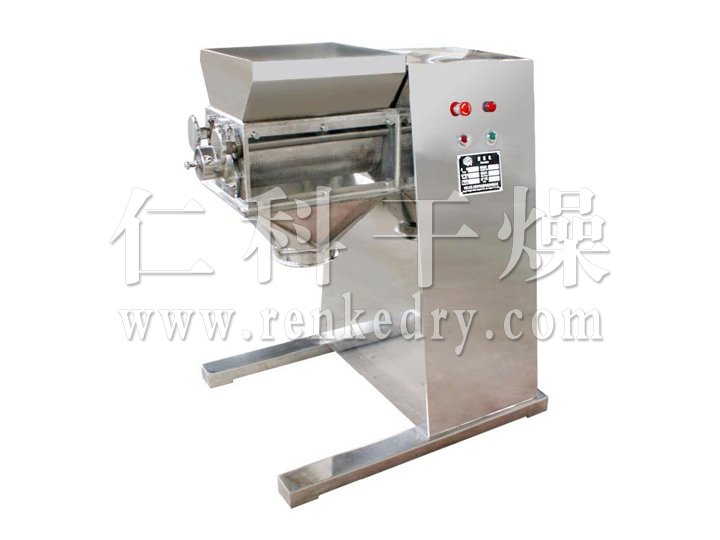

YK Swing Granulator is the special granulator that can make damp powder pass through screen and granulate particles under the reaction of clockwise and counterclockwise rotating of cylinder. In addition, it can make the agglomeration powder into the needed size particles. The material contact area is made of stainless. It’s easy to clean, simple operation and low energy consumption.
Material to be dried
The machine is applicable for pharmaceutical, foodstuff, chemical, solid drink and so on lndustries.
Technical Parameter
| Spec | YK160 | YK320 |
| Capacity | 50-200 (kg/h) | 50-400 (kg/h) |
| Power | 2.2 (kw) | 7.5 (kw) |
| Speed | 65 (rpm) | 65 (rpm) |
| Sway angle | 360 (°) | 360 (°) |
| Diameter | Φ160 (mm) | Φ320 (mm) |
| Weight | 450 (kg) | 750 (kg) |
| Overall dimension | 1000×800×1300 (m) | 1500×1200×1500 (m) |
